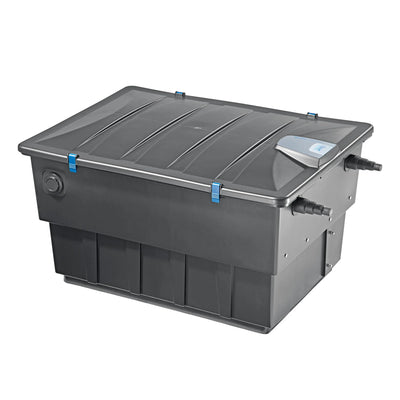

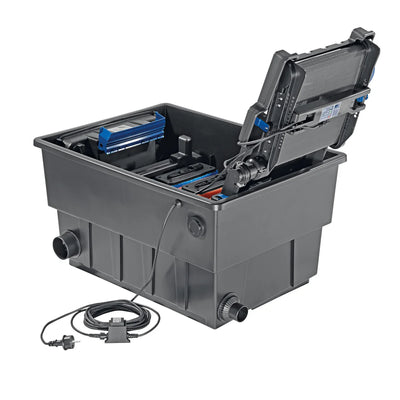

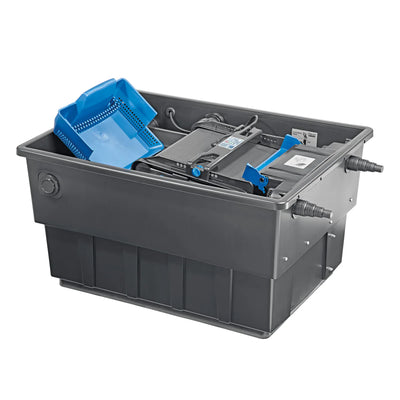

Oase Bio Tec ScreenMatic 40000

$2,399.00

Highly effective flow-through filter for ponds up to 140 m³, which requires very little maintenance because the coarse dirt is separated before entering the filter and it has a long service life: The double-sealed motor ensures a much longer service life. The adjustable automatic cleaning system ensures an efficient separation result. A water distributor without bottlenecks prevents blockages. Innovative dirt barriers prevent the filter from being washed out. The cleaning is very convenient: The filter belt cleans itself and the filter sponges are cleaned directly in the filter.

Clear and healthy pond water with minimum maintenance requirements
Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
Continuous belt filter at an affordable price
Incl. OASE Clear Water Guarantee
Significantly less maintenance is required, thanks to coarse debris extraction

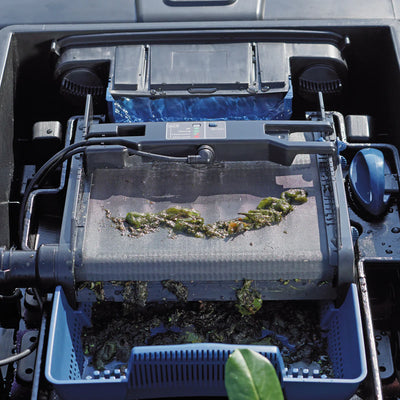

More convenience, thanks to automatically driven self cleaning of the belt filter
Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution.
Incl. LED function check
Cleaning of filter sponges directly in the filter, without removal
Sludge drain with slide valve for removing debris from the filter system

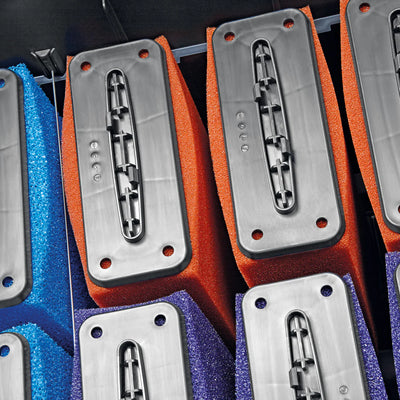

Different filter media for optimal development of filter bacteria
Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection possibility for Bitron C and Eco UVC clarifiers

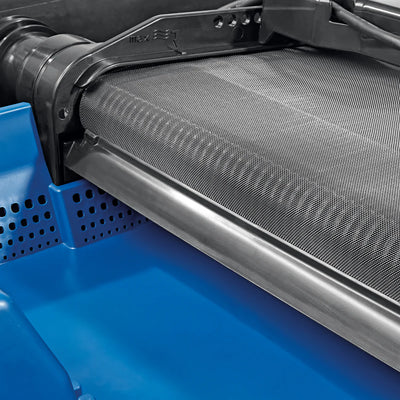

Reinforced strap material for an extended service life
Double-sealed motor for an extended service life

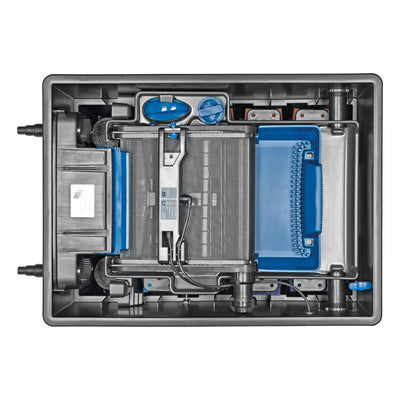

Water distributor without danger of clogging: Distributes the water uniformly on the belt filter

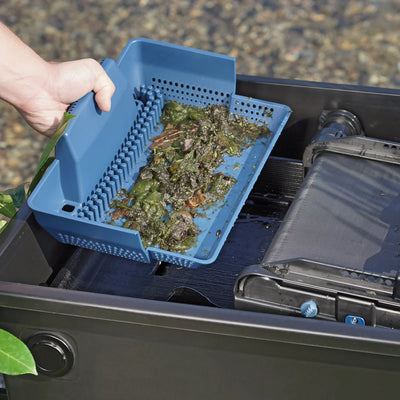

Sludge basket with greater volume and simplified handling
Rubberised separating lip for outstanding separation result
Free brush for occasional cleaning of the belt filter
Manual belt run now possible via button
Highly effective flow-through filter for ponds up to 40.0 m³
Lids of models 40,000 and 60,000 with storm-safe fastening clips

Specifications

Product Number	03OG003 \| 57694
Rated voltage (primary, secondary)	230 V / 50 Hz, 12 V / AC
Power consumption - W	5 W
Cable length 12 V device	2.10 (Power unit) + 5.00 m
Net weight	20.000 kg
Guarantee (+ request guarantee) - years	2 + 1 Years
Total number of filter foams – pc.	8 Units
Number of blue filter foams – pc.	2 Units
Number of red filter foams – pc.	3 Units
Number of purple filter foams – pc.	3 Units
Special filter granulate – kg	2.5 kg
Temperature display	No
Coarse dirt separation – micrometres	300 µm
Connection inlet - mm	25 / 32 / 38 mm
Connection inlet	1", 1 ¼", 1 ½"
Connections outlet	DN 75
Connections, sludge discharge	DN 50
Min. flow rate - l/h	4000 l/h
Max. flow rate - l/h	9000 l/h
Suitable for ponds up to max. – m³	40 m³
Suitable for ponds with fish stock – m³	20 m³
Suitable for ponds with koi – m³	10 m³
Connection to	Bitron C 36 - 110 W, Bitron Eco 120 - 240 W

Collections: Filtration, Filtration and UV, Pond Filters

Type: filter
